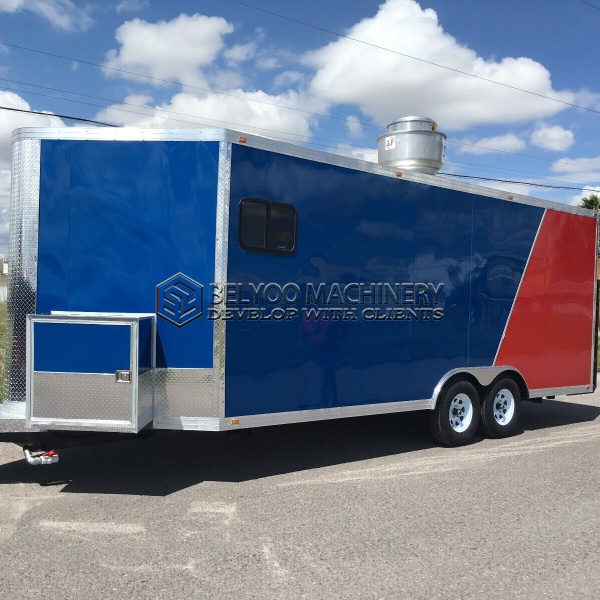

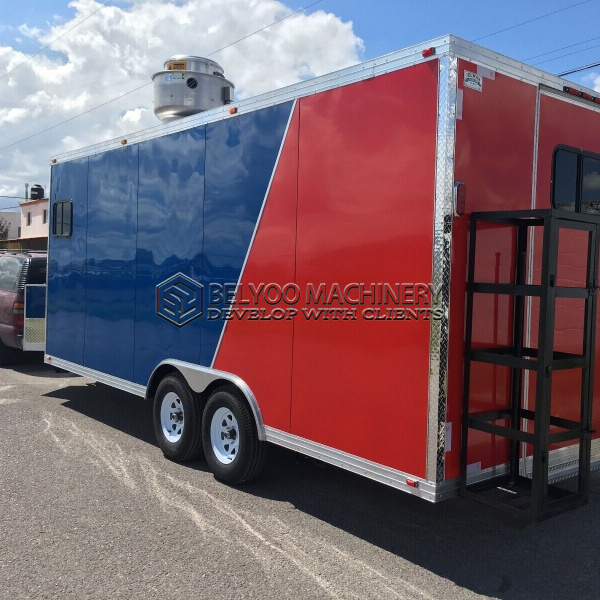

16-5ft Red And Blue Square Food Trailer for Festival

Overall dimensions (L×W×H): 16.5 × 6.5 × 7.7 ft, customizable

Body type: A square, flat-panel body

Body material: Stainless steel

Approx. unit weight: 1000Kg

Color: Customizable

Standard electrics: 110 V / 3.6 kW or 220 V / 7.5 kW supply

Sockets: Six sockets on bodies up to 4 m, eight above 4 m

Certification set: CE / DOT / VIN / UL / NSF

Brakes: Mechanical and hand brake; overrun or electric brake options

Description

If you are comparing square food trailers for a working route, the 16.5 ft red blue square food trailer deserves a close look. We use this as a starting point and adapt the layout, services and finishes to the market you are selling into.

16.5 ft red blue square food trailer: body, windows and working space

A 16.5 ft body lets us place the cooking line and the serving window on the same side without squeezing the prep area.

As configured, the 16.5FT Red and Blue Square Food Trailer | Festival Food Trailer for Sale is listed at 16.5 × 6.5 × 7.7 ft and around 1000Kg; those figures change if you alter the body or the equipment set.

A working setup for street food menus

We normally start the drawing with the heaviest appliance and work outwards, because its weight and heat decide where everything else can go.

  • a prep and plating counter with under-cabinet storage
  • a griddle and fryer line with a stainless backsplash
  • a serving shelf and condiment rail at the window
  • a sink station with a separate hand-wash section

Day-to-day usability comes from small decisions: prep space beside the cooking position, storage that does not require bending mid-service, and a serving shelf deep enough for real packaging.

What can be changed before production

Use the Options & Upgrades tab as a checklist before you ask for a drawing. The usual add-ons are an awning, additional windows, heavier cable runs, extra outlets, better wheels and storage.

A unit for a farm shop or food producer

Producers selling their own product need display and storage as much as cooking space. The counter can be arranged for retail packs alongside a small preparation line.

Production time and delivery

Allow roughly 30-45 days of production after the drawing is signed. Crate size, container count and export papers are set from the finished dimensions, not from an early estimate.

Buyers looking at the 16.5FT Red and Blue Square Food Trailer | Festival Food Trailer for Sale often also consider the 16.5ft Black Single Window With Fence Square Food Trailer; the useful difference to check is body style and serving layout, not just the colour.

Construction details that matter

Chassis, axles and brakes are specified once the equipment list is known, because a fully fitted unit weighs considerably more than the bare body.

Brake requirements set by local rules are specified at drawing stage.

The shell is built from stainless steel, with insulation that helps both refrigeration and general working comfort.

Documentation follows the order: if your importer or local authority asks for NSF-aligned food equipment or UL-listed wiring, that requirement is written into the build sheet.

Send your equipment list and the site conditions, and we will specify this unit around them with a formal quote.

Standard equipment for this square food trailer

  • a griddle and fryer line with a stainless backsplash
  • a prep and plating counter with under-cabinet storage
  • one large service window or two smaller windows
  • a serving shelf and condiment rail at the window
  • fresh and waste water tanks with a separate hand-wash route
  • a sink station with a separate hand-wash section
  • stainless worktop and prep area with a sink and water pump
  • interior lighting, distribution board and accessible cable runs

Exterior and serving side

  • a camper-style door lock and alloy wheel arches
  • a manual or electric awning, with body reinforcement where needed
  • additional service door; horizontal or vertical sliding windows
  • additional serving windows, including folding and three-fold styles
  • bumper trim styles on the rounded shell

Wheels and tyres

  • 13-15 inch rims in steel or alloy
  • tyres with a higher load rating, supplied per axle set
  • a tyre band chosen for your towing route

Chassis and axles

  • jockey wheel, 1.2 t or 1 t rating
  • an extra axle and a 2 t overrun-brake coupling
  • leaf-spring or torsion axle set by load band
  • a heavier chassis rating and electric-brake torsion axles
  • a hand-pull build with no axles or wheels

Crating and freight

  • crate-only supply or crated delivery to a named port
  • a loading plan based on the finished unit

Interior

  • solid wood counters, wood-grain panels or interior wallpaper
  • cabinet rework; stainless drawers and pull-out bin base
  • vinyl flooring and pizza oven installation, with or without a base
  • crystal-carbon or marble-look wall panels; not available on curved or door faces

Notes for this 16.5 ft body

  • layout changes are drawn against the 16.5 ft shell, so window position and counter length are confirmed before any upgrade is quoted

Electrical

  • heavier-gauge wiring to UL or CE requirements
  • dual circuit or three-phase supply
  • additional sockets and an ETL shore-power inlet

Dimensions

  • a wider, taller or longer body
  • dimension changes confirmed against towing limits and container loading

From drawing to dispatch

Expect roughly 30-45 days of production once the layout is signed off. Each build stage is photographed for you, and the finished 5FT is walked through on camera.

Freight

  • timber crating with a protected serving front
  • container loading calculated on finished dimensions
  • port handover or crate-only supply

Documentation

  • chassis and identification documents
  • certification paperwork matching your market
  • document set issued ahead of arrival

After-sales support

  • written warranty terms issued with your build documentation
  • wear components listed separately from covered parts
  • remote fault-finding by video for electrics, plumbing and windows
  • replacement parts added to your next shipment
