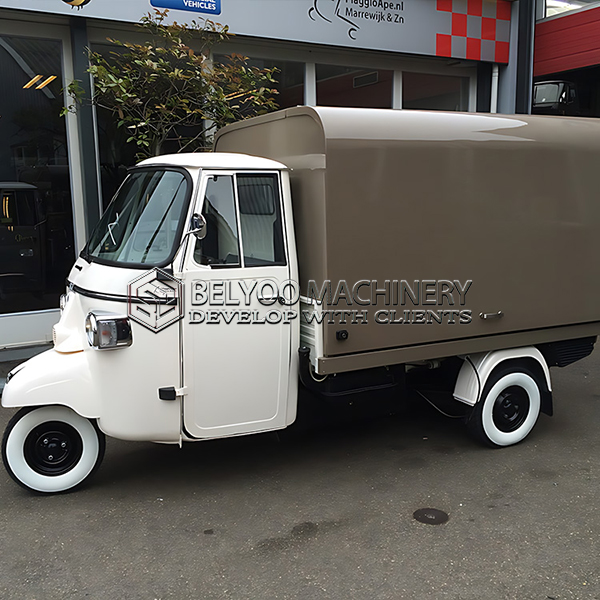

Pizza Piaggio Food Truck

Overall dimensions (L×W×H): 11.5 × 4.9 × 7.5 ft, customizable

Body type: A piaggio three-wheeler base

Approx. unit weight: 1000KG

Color: Red, Black, Yellow, Green, Brown, Wite or Customized

Standard electrics: 110 V / 3.6 kW or 220 V / 7.5 kW supply

Sockets: Six sockets on bodies up to 4 m, eight above 4 m

Certification set: CE / DOT / VIN / UL / NSF

Brakes: Mechanical and hand brake; overrun or electric brake options

Description

If you are comparing Piaggio food trucks for a working route, the Piaggio food truck deserves a close look. The unit is supplied as a configurable build so the serving side and prep side can be planned together.

Layout and serving setup of the Piaggio food truck

The internal layout is drawn around your equipment list: cooking line on one side, prep and storage on the other, and a clear path to the serving window.

As configured, the Pizza Piaggio Food Truck is listed at 11.5 × 4.9 × 7.5 ft and around 1000KG; those figures change if you alter the body or the equipment set.

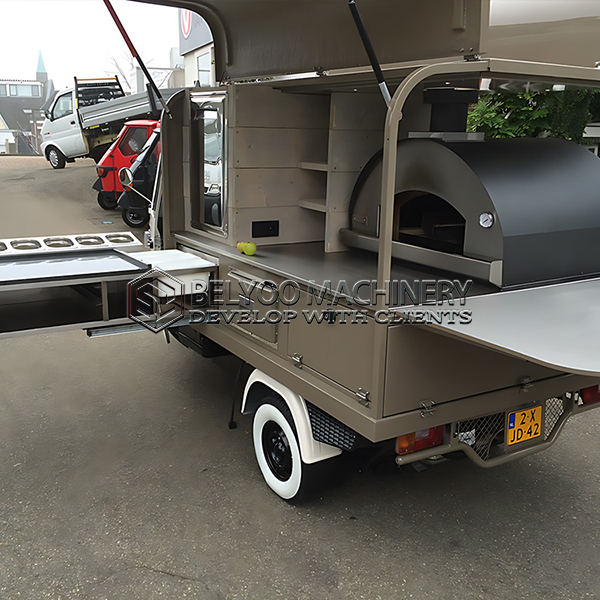

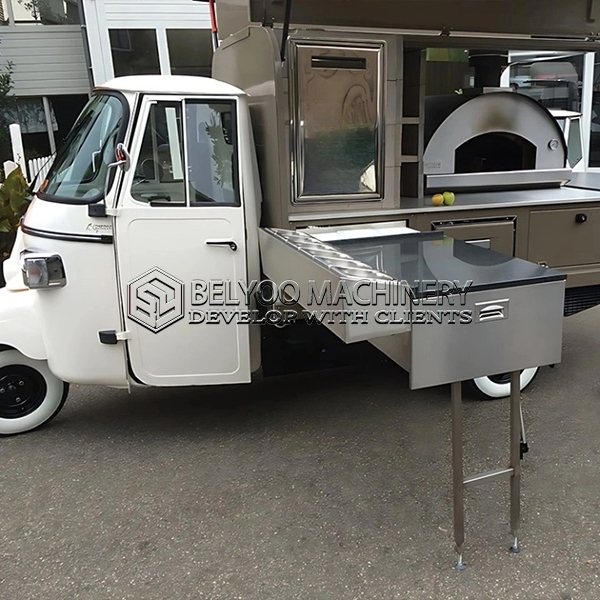

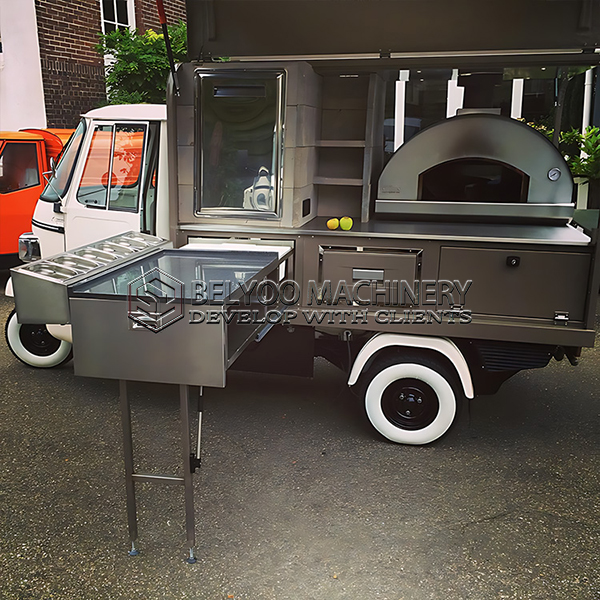

A working setup for pizza menus

A wood-fired oven needs a different flue and clearance approach from a gas deck oven, so we ask for the oven model before drawing the structure.

  • dough prep and proofing storage
  • peel and tray storage beside the oven
  • a make table with chilled ingredient pans
  • a pizza oven position with a heat-shielded flue

Oven choice changes the whole build, so whether you run a deck oven, a conveyor or a wood-fired unit with a base, the structure, ventilation and clearances are drawn to suit.

Ordering, build slots and shipping

From drawing approval to crated unit, the normal window is 30-45 days. Before packing, the finished unit is filmed end to end so the build can be checked remotely.

Chassis, materials and road use

Chassis, axles and brakes are specified once the equipment list is known, because a fully fitted unit weighs considerably more than the bare body.

Brake requirements set by local rules are specified at drawing stage.

Sandwich panels with a stainless skin give this truck body a wipe-clean interior that stands up to grease and steam.

Compliance follows the destination market: say where this body is going and the NSF and UL items that apply are listed back to you.

A unit for a rental or hire fleet

For hire fleets the priority is durability and easy handover: simple controls, labelled circuits, robust steps and finishes that survive repeated users. We can standardise several units on one drawing so spares and training stay consistent.

Buyers looking at the Pizza Piaggio Food Truck often also consider the Orange Hot Dog Piaggio Food Truck; the useful difference to check is body style and serving layout, not just the colour.

Customising this unit

If you already know the appliance models you want, send them with your enquiry and we will draw the counter, clearances and circuits around them.

Send us a photo of the unit you like and the country it will work in, and we will reply with a build proposal and quotation.

Compare with 11FT Beige Piaggio Food Truck for Ice Cream Sales if you are still choosing a body style.

Standard equipment for this Piaggio food truck

  • peel and tray storage beside the oven
  • stainless worktop and prep area with a sink and water pump
  • fresh and waste water tanks with a separate hand-wash route
  • a pizza oven position with a heat-shielded flue
  • dough prep and proofing storage
  • one large service window or two smaller windows
  • interior lighting, distribution board and accessible cable runs
  • a make table with chilled ingredient pans

Chassis, axles and brakes

  • jockey wheel upgrade in two load ratings
  • an extra axle and a 2 t overrun-brake coupling
  • leaf-spring or torsion axles matched to the build weight
  • a heavier chassis rating and electric-brake torsion axles
  • a hand-pull build with no axles or wheels

Body and window options

  • a camper-style door lock and alloy wheel arches
  • a manual or electric awning, with body reinforcement where needed
  • additional service door; horizontal or vertical sliding windows
  • additional serving windows, including folding and three-fold styles
  • alternative bumper trim styles for rounded bodies

Wheels, tyres and hubs

  • steel or alloy rims from 13 to 15 inch
  • higher load-rated tyres per axle set
  • a tyre band chosen for your towing route

Packing and freight

  • crate only; crated delivery to Qingdao or another port
  • a loading plan based on the finished unit

Dimensions

  • a wider, taller or longer body
  • size changes checked against towing limits and container space

Interior finishes

  • solid wood counter, wood-grain interior or wallpaper
  • cabinet rework; stainless drawers and pull-out bin base
  • vinyl flooring; pizza oven installation with or without base
  • crystal-carbon or marble-look wall panels, excluding curved and door faces

Electrical

  • UL or CE certified wiring in heavier gauges
  • a dual circuit or three-phase supply
  • additional sockets and an ETL shore-power inlet

Production window

The usual window is 30-45 days from a signed drawing, including photo reporting during fabrication and a recorded inspection before crating.

Shipping

  • secure timber crate with chassis restraints
  • container quantities worked out from the finished size
  • crated delivery to your chosen port

Paperwork

  • identification plate and chassis documentation
  • certificates required for your destination
  • documents supplied before the container arrives

After-sales support

  • written warranty terms issued with your build documentation
  • wear components listed separately from covered parts
  • remote fault-finding by video for electrics, plumbing and windows
  • replacement parts added to your next shipment
